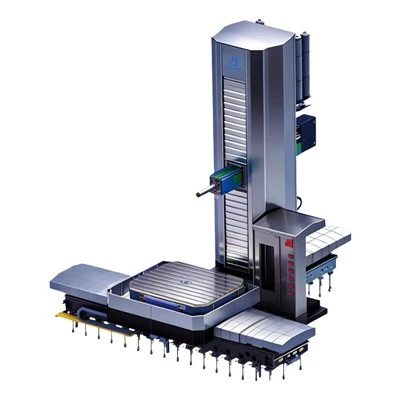

Planer Type Horizontal Boring Machine
Product Description
For large and heavy workpieces, a conventional machining center can quickly run out of room. A planer type horizontal boring machine is built for this kind of job, giving manufacturers a much larger working range while keeping the workpiece firmly supported during machining. The machine combines horizontal boring, milling, drilling, and tapping capabilities, making it suitable for large components that need several machining operations without constant repositioning.
The JPB130R, JPB160R, JHC130R, and JHC160R models cover different spindle and travel requirements. Spindle diameters are available in 130 mm and 160 mm, with spindle speeds from 10 to 2,000 rpm. Depending on the model, the worktable can carry up to 20,000 or 30,000 kg. With a 360° rotating B-axis and long X-axis travel, this planer type horizontal boring machine offers a practical setup for heavy machinery, energy equipment, large molds, industrial components, and other oversized parts.
Product Features
Heavy-Duty Horizontal Boring Design
The horizontal spindle layout is well suited to large components where deep holes, large bores, side surfaces, and heavy milling cuts are involved. The floor-type structure gives the workpiece a stable base, while the movable worktable provides a wide machining area.
Flexible Multi-Axis Movement
The machine is designed with X, Y, Z, V, W, and B-axis movements. The X-axis travel is available from 3 to 6 m, while the B-axis table rotates through 360°. This makes it easier to reach different areas of a large workpiece and reduces the need for repeated clamping.
Large Spindle and Strong Cutting Performance
The JPB130R and JHC130R use a 130 mm spindle, while the JPB160R and JHC160R are equipped with a 160 mm spindle. All models use an ISO 50 spindle taper and offer a speed range of 10–2,000 rpm. Maximum spindle torque reaches up to 3,740 Nm on the 160 mm models, providing enough cutting power for demanding machining jobs.
Rigid Structure and Durable Materials
The machine uses a heavy-duty cast structural design for the main supporting components. The rigid construction helps maintain stability during high-load machining and reduces the influence of vibration on machining quality. The spindle and boring bar are designed for continuous industrial use, while the guideway system is selected according to the model and application.
For projects involving steel, cast iron, and other common engineering materials, cutting tools and machining parameters can be matched to the material and required finish.
Technical Specifications
|
Item |
JPB130R |
JPB160R |
JHC130R |
JHC160R |
|
Spindle Diameter |
130 mm |
160 mm |
130 mm |
160 mm |
|
Spindle Outer Diameter |
221.44 mm |
260 mm |
221.44 mm |
260 mm |
|
Spindle Taper |
ISO 50 |
ISO 50 |
ISO 50 |
ISO 50 |
|
Spindle Speed |
10–2,000 rpm |
10–2,000 rpm |
10–2,000 rpm |
10–2,000 rpm |
|
Main Motor Power |
31/37 kW |
44/45 kW |
31/37 kW |
44/45 kW |
|
Max. Spindle Torque |
2,570/3,070 Nm |
3,650/3,740 Nm |
2,570/3,070 Nm |
3,650/3,740 Nm |
|
Max. Axial Spindle Force |
25,000 N |
25,000 N |
25,000 N |
25,000 N |
|
Boring Bar Section |
460 × 520 mm |
460 × 520 mm |
460 × 520 mm |
460 × 520 mm |
|
X-Axis Travel |
3/4/5/6 m |
3/4/5/6 m |
3/4/5/6 m |
3/4/5/6 m |
|
Y-Axis Travel |
2/2.5/3 m |
2/2.5/3 m |
2.5/3/4 m |
2.5/3/4 m |
|
Z-Axis Travel |
2/2.5 m |
2/2.5 m |
2/2.5 m |
2/2.5 m |
|
V-Axis Travel |
0.7 m |
0.7 m |
1.0 m |
1.0 m |
|
W-Axis Travel |
0.7 m |
0.7 m |
0.8 m |
0.8 m |
|
B-Axis Rotation |
360° |
360° |
360° |
360° |
|
Worktable Size |
1800×2200 / 2000×2000 mm |
2000×2500 / 2500×2500 mm |
1800×2200 / 2000×2000 mm |
2000×2500 / 2500×2500 mm |
|
Max. Table Load |
20,000 kg |
30,000 kg |
20,000 kg |
30,000 kg |
|
Rapid Feed X/Y/Z/V/W |
10,000 mm/min |
10,000 mm/min |
10,000 mm/min |
10,000 mm/min |
|
Rapid Feed B |
2 rpm |
1.75 rpm |
2 rpm |
1.75 rpm |
|
Cutting Feed X/Y/Z/V/W |
8,000 mm/min |
8,000 mm/min |
8,000 mm/min |
8,000 mm/min |
|
Cutting Feed B |
0.003–1.5 rpm |
0.003–1.5 rpm |
0.003–1.5 rpm |
0.003–1.5 rpm |
|
CNC System |
Siemens 828D / FANUC 0i |
Siemens 828D / FANUC 0i |
Siemens 828D / FANUC 0i |
Siemens 828D / FANUC 0i |
|
Tool Capacity |
40 pcs. |
40 pcs. |
40 pcs. |
40 pcs. |
Specifications can be adjusted according to the selected machine configuration and actual machining requirements.
Key Advantages
Handles oversized workpieces:
With X-axis travel up to 6 m and table capacities reaching 30 tons, the machine is designed for components that are too large or heavy for standard CNC machining centers.
01
Less setup work:
The 360° B-axis rotary table allows the workpiece to be positioned from different angles. This can reduce repeated clamping and make multi-side machining more convenient.
02
Strong spindle performance:
The 160 mm spindle models provide up to 3,740 Nm of maximum torque, making them a good fit for heavy boring and milling operations.
03
Flexible machine configuration:
Vertical milling heads, universal milling heads, extended milling heads, flat milling heads, and other tooling options can be selected depending on the machining task.
04
Suitable for different production needs:
The available travel ranges, spindle sizes, table dimensions, and CNC systems give buyers more flexibility when choosing a machine for a specific workshop.
05
Services
Choosing a large CNC machine is not just about comparing numbers. We can help you select the right planer type horizontal boring machine based on your workpiece dimensions, weight, material, hole size, machining processes, required accuracy, and production volume.
Before production, we can discuss the spindle configuration, table size, travel range, milling head, CNC system, tool capacity, and other options. After delivery, installation guidance, operation support, maintenance advice, and spare parts assistance are available.
FAQ
What is a planer type horizontal boring machine used for?
It is mainly used for boring, milling, drilling, and related machining operations on large and heavy metal components. It is commonly used where a large working range and strong cutting capability are required.
What is the maximum workpiece weight?
The JPB160R and JHC160R models can support workpieces up to 30,000 kg, while the 130 mm spindle models support up to 20,000 kg.
What spindle diameters are available?
The series is available with 130 mm and 160 mm spindle diameters.
Can the worktable rotate?
Yes. The B-axis provides 360° table rotation, making multi-directional machining easier.
Which CNC systems are available?
The machine can be equipped with Siemens 828D or FANUC 0i CNC systems.
Can the machine be customized?
Yes. Table dimensions, travel ranges, spindle configuration, milling heads, tool capacity, and other options can be discussed according to your machining requirements.
How should I choose the right model?
Send us your workpiece size, weight, material, required hole diameter, machining operations, accuracy requirements, and expected production volume. We can recommend a suitable model and configuration.
